Introduction
While it may seem like a mundane rubber or silicone part, a failure of a valve cover gasket in a heavy-duty diesel engine can be the starting point of a cascade of costly damage. The extreme conditions in diesel are very different from those of a gasoline engine: high compression ratios, extreme thermal cycling, high compression ratios, and intense vibrations, all of which place a tremendous strain on each component.
Failure of this relatively insignificant seal can have far-reaching implications. Other precision-engineered external parts, such as fuel injectors, wiring harnesses, and emission control systems, are especially susceptible to oil contamination in diesel engines.
Ignoring an oil leak from the valve cover does more than simply deplete engine oil; it sets the stage for expensive component failures and reduced performance.
Recognising the Early Warning Signs
Visual Inspection

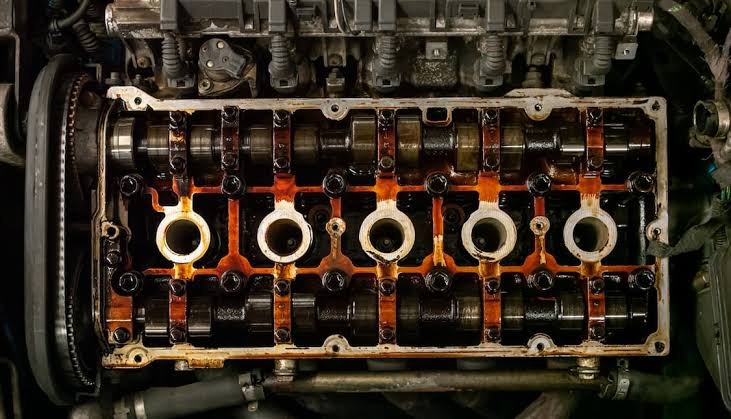

The most important step to take to prevent failure of the valve cover gasket is to regularly check for signs of failure. Check under the hood for any symptoms of problems. The most apparent sign is pooling of the oil around the cylinder head (sometimes there is a thick layer of sooty dirt that sticks to the oil).
As the leak gets worse, smoke may be seen coming from the engine compartment where the oil is dripping onto hot exhaust parts. The vicinity of the valve cover will be damp, and oil spots may become visible on the ground beneath where you park. These visual clues are not to be overlooked, as they are the first chance to stop additional harm.
Performance Drops
A leaking valve cover gasket is made evident beyond the obvious by various performance problems. Oil can cause a misfire in the engine because it can prevent the spark plugs from connecting or the fuel injectors from harnessing. Rough idling, hesitating when accelerating, or a lack of power may occur.
Another clue that is a red flag is the distinct odour of burning oil within the cabin, which suggests oil is coming into contact with the hot surfaces of the engine. The symptoms tend to gradually get worse and can be confused with more serious engine issues. In order to prevent the problem from worsening, it is important to be aware of the leaking valve cover gasket symptoms.
How Oil Leaks Ruin Diesel Electrical and Fuel Systems
Fuel Injector Harness Degradation
Fuel injectors and complicated wiring loom are located right under or near the valve cover in most diesel engines. These critical electrical components are constantly saturated with oil when the oil gets past the gasket. The wire’s insulation is destroyed by the oil, which degrades the wire insulation over time, causing it to swell, soften, or become brittle, which can lead to cracks and exposed conductors.
This degradation can result in electrical shorts, lost connections, and misfires that are extremely hard to find. Replacing a fuel injector harness is particularly costly and time-consuming, as it often requires removing the intake manifold and other components to access the damaged wiring.
Glow Plug Contamination
In diesel engines, the glow plugs are crucial for providing an initial warm-up of the combustion chambers, which helps in the ignition process when the engine is cold. If oil accumulates in the glow plug wells due to a leaking valve cover gasketbecause of a leaking valve cover gasket, this will obstruct heat transfer.
It is difficult for the heating elements to attain the necessary operating temperatures, resulting in premature failure and difficult cold starts. Dirty glow plugs can also lead to poor combustion, leading to engine “rough idle” and higher emissions until the engine is up to operating temperature.
Sensor Failures
A web of delicate sensors is found in modern diesel engines and keeps them performing at their optimum. Oil contamination can be a very serious problem for critical sensors such as the Crankshaft Position Sensor (CPS) or Injection Control Pressure (ICP) sensor. These sensors will give a false signal to the Engine Control Unit (ECU), causing false diagnostic trouble codes (DTCs) and possibly putting the engine in a limp mode when covered with engine oil. This safety feature restricts power and speed adversely, and can often leave the driver marooned until the problem is addressed (which can be as simple as a leaky gasket).
The Impact on Emission Systems and Turbochargers
Turbocharger Heat Damage
The turbocharger runs at very high temperatures and may be red-hot when it is under heavy load. Leaking engine oil can drop on this extremely hot part, which can cause a serious fire hazard that should not be taken lightly.
Oil baked onto the turbocharger housing acts as an insulating layer, trapping heat and preventing the housing from dissipating heat effectively. This pressure increase causes the turbo bearings and seals to wear out quickly, and ultimately, the turbo will fail: a repair that can easily cost thousands of dollars.
Exhaust and EGR Complications
Oil leaks from the outside are also possible in the vacuum lines or in the seals of the Exhaust Gas Recirculation (EGR) system. If oil gets into the EGR system, it will combine with soot and carbon deposits, forming a thick, sticky sludge which will cause further system clogging. This restriction leads to decreased performance, higher emissions and lower fuel economy due to an EGR valve sticking. In some instances, the whole EGR cooler will have to be replaced, which can cost upwards of a thousand dollars in parts and labour. These cascading failures can be stopped by the right valve gasket from EGR Performance.
Preventative Maintenance and Best Replacement Practices
Don’t Just Torque It Down
Many diesel owners are tempted to simply tighten the valve cover bolts when they notice a leak. This is not often effective and can often exacerbate the problem. If over-tightened, the valve cover, especially if it’s made of lightweight aluminum or composite, can warp around the bolt holes.
Once warped, the cover itself must be replaced, turning a simple gasket job into a much larger and more expensive repair.
Preparation Is Key
Good preparation is needed for a lasting repair. It is important to initially clean the mating surface thoroughly to remove all remaining old RTV silicone, oil residue, and debris. Avoid scratching the aluminium surface with a plastic scraper or a special gasket removal tool!
Any leftover contaminants will prevent the new gasket from sealing correctly, and will virtually ensure another leak in the short-term. Don’t rush the preparation step, as the most common cause of gasket failure is rushing through the preparation process.
Proper Torque Specs
It’s crucial to follow the manufacturer’s exact torque sequence and limits to ensure a successful valve cover gasket replacement. Bolts are to be snugged in a particular sequence, usually in a star pattern starting from the centre and going outwards.
A calibrated torque wrench should be used to torque each bolt to the designated torque. Too high a torque will crush or pinch the new gasket, and too low a torque will cause oil to leak. That’s why many diesel guys go to great lengths to get a good torque wrench, just for this reason; too much torque is a common reason for repeat failures.
Conclusion
The type of valve cover gasket failure that occurs in a diesel engine is more than an inconvenience; it’s a ticking time bomb for wiring harnesses, fuel injectors, sensors, emission systems, and even fire hazards.
This process of damage starts with an oil seep and can lead to thousands of dollars in repairs that could be avoided if it were caught early enough. Don’t overlook any repair of a valve cover leak because it is a minor problem; to keep both your diesel engine and your wallet healthy for years to come.
Consider checking out your engine bay today and recognising early symptoms of oil leakage, and changing any worn engine seals with quality parts promptly. Your diesel engine and your bank account will thank you for it!
